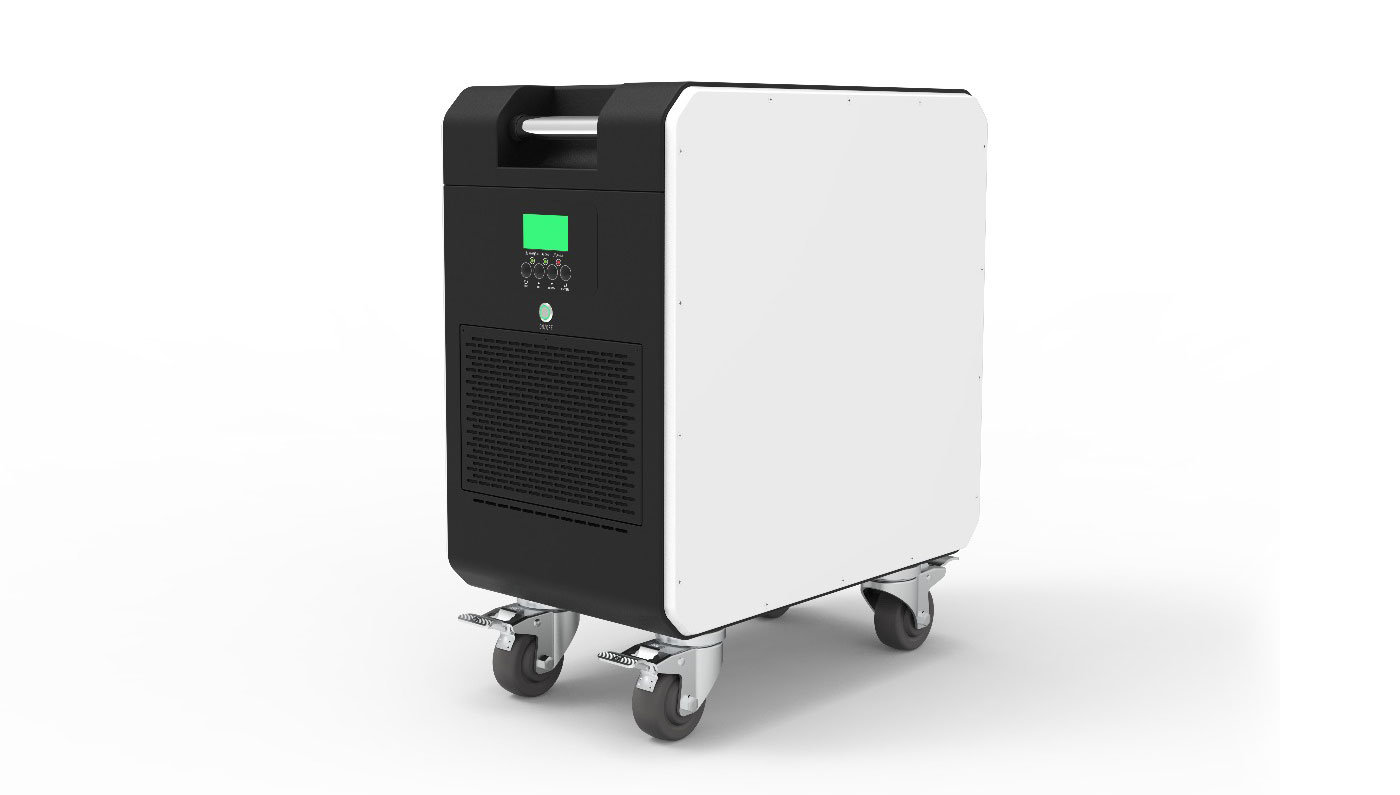

| Model | D0415 |
|---|---|
| Battery Type | LiFePO4 |
| Capacity | 3584Wh/4019.2Wh |
| Output Rating | 1500VA |
| Waveform | Pure sine wave |
| Frequency | 50/60Hz |
| Overload Capacity | 5Min@102%~120%Load; 30s@120%~150%Load |
| Peak Efficiency | >90.5%@12VDC |
| Rated input voltage | 230Vac |
| Max Input Current | 10A(RMS) |
| PV Max Input Power | 1000W |
| PV Max Input Current | 14A |
| MPPT Voltage Tracking Range | 20~100VDC |
| PV Max Open Circuit Voltage | 125VDC |
| Charging Temperature | 0C~45C |
| Discharge Temperature | -20℃~50C |
| Humidity | Max 90%RH |
| Storage Ambient Temperature | -20℃~45℃ (15~25℃ The Best) |
| Battery Cycle Life | >11000 times (70% Capacity Retention) |
| Net Weight | 35kg |
| Dimension:L*W*H | 355*255*425mm |
| Ingress Protection | IP21 |
